Driving and Structure

Supply of pipes, bars, steel products in general. We sell tubes and steel bars in different versions and qualities, structural tubes, perforated and chrome bars, precision tubes, intended for multiple applications.

Category:

PERFORATED BAR

Dimensional Range

  • Diameters of 26.9 mm to 812.8 mm.
  • Thickness of 6.3 mm to 100 mm.



StandardsSteels
EN-10297 – EN-10210E355 – S355J2H – E470
EN-10294 / NFA 49312E355K2 – E590K2



Large Dimensions

  • External diameters of 711.2 mm to 762.0 mm and 812.8 mm.
  • Thickness of 6.3 mm to 100 mm.



StandardsSteels
EN-10297 – EN-10210E355 – S355J2H

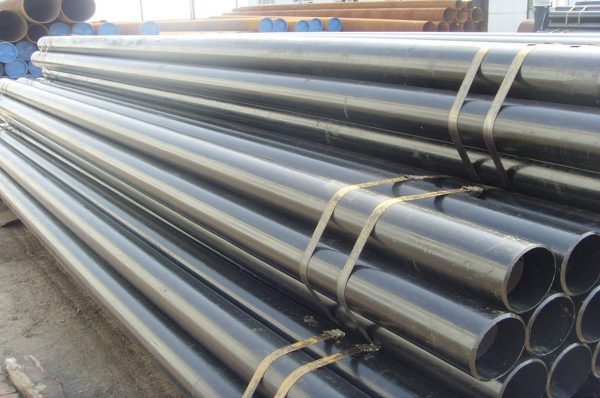

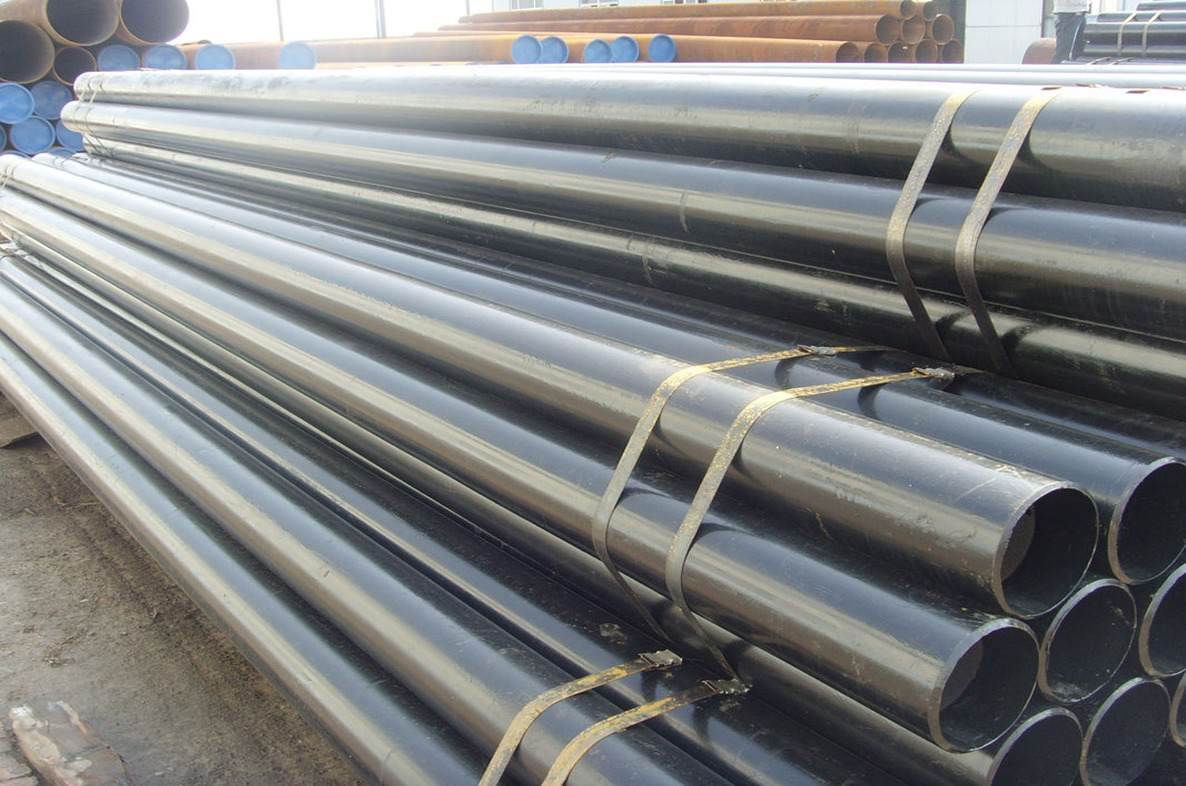

SEAMLESS PIPING

Dimensional Range

  • Diameters of 10.2mm to 165.1 mm.
  • Diameters from 10.2mm to 558.8 mm
  • Diameters from 10.2 mm to 165.1 mm



StandardsSteels
DIN 2440ST-33.2
DIN 2448ST-37.2
DIN 1629/DIN 2441ST-33.2



CALIBRATED TUBE

Dimensional Range

  • Outside diameter of 4 mm to 305 mm.
  • Thickness of 1 mm to 25 mm.

Finishes

  • “BK” – “BK+S” – “GBK” – “BKW”



StandardsSteels
Seamless EN10305-1 (old DIN-2391)E355/E235

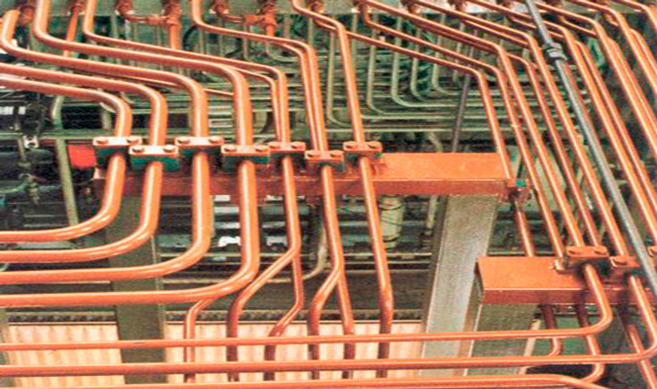

OLEODINAMIC CIRCUIT PIPE

Dimensional Range

  • Outside diameter ø 4 mm to ø 100 mm.
  • Thickness of 0.5 mm to 10 mm.

Finishes

  • Normalized and phosphated, black finish "NBK"
  • Normalized and zinc plated, white finish "NBK"
StandardsQuality
Seamless EN10305-4 (DIN-2391)E253 (ST-37.4) malleable and flareable

* (bonderized treatment, supports bending in the cold)

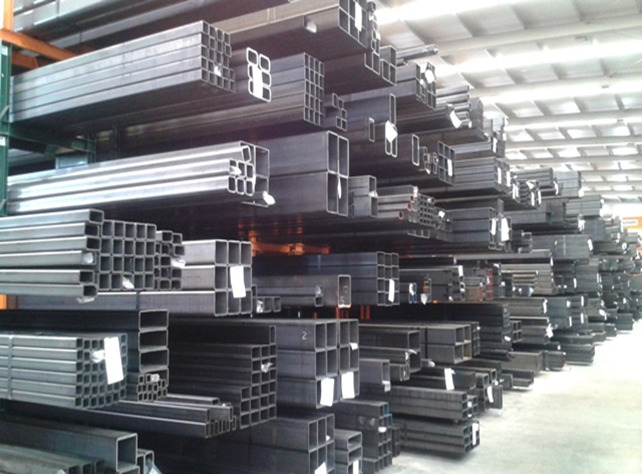

Structural steel tubing

Dimensional Range

  • Sections of 30×30 mm to 500×500 mm.
  • Sections of 50 x 30 mm to 600 x 400 mm.
  • Thicknesses of 3 mm to 20 mm.
  • Circular of 5 mm to 10 mm.
  • 5 mm thickness to 100mm.

* Other (greater) dimensions JUMBO on demand, minimum quantities.



StandardsSteels
EN-10210 (hot forming)S355J2H (standard) / S275JOH / S235JR
EN-10219 (cold forming)S355NH. y offshore EN10225 : S355G13+N, S355G15+N y S355G15+Q.

*Commercial lengths of 6 or 12 meters.

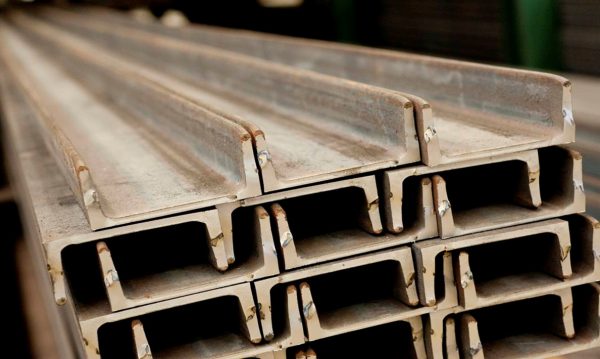

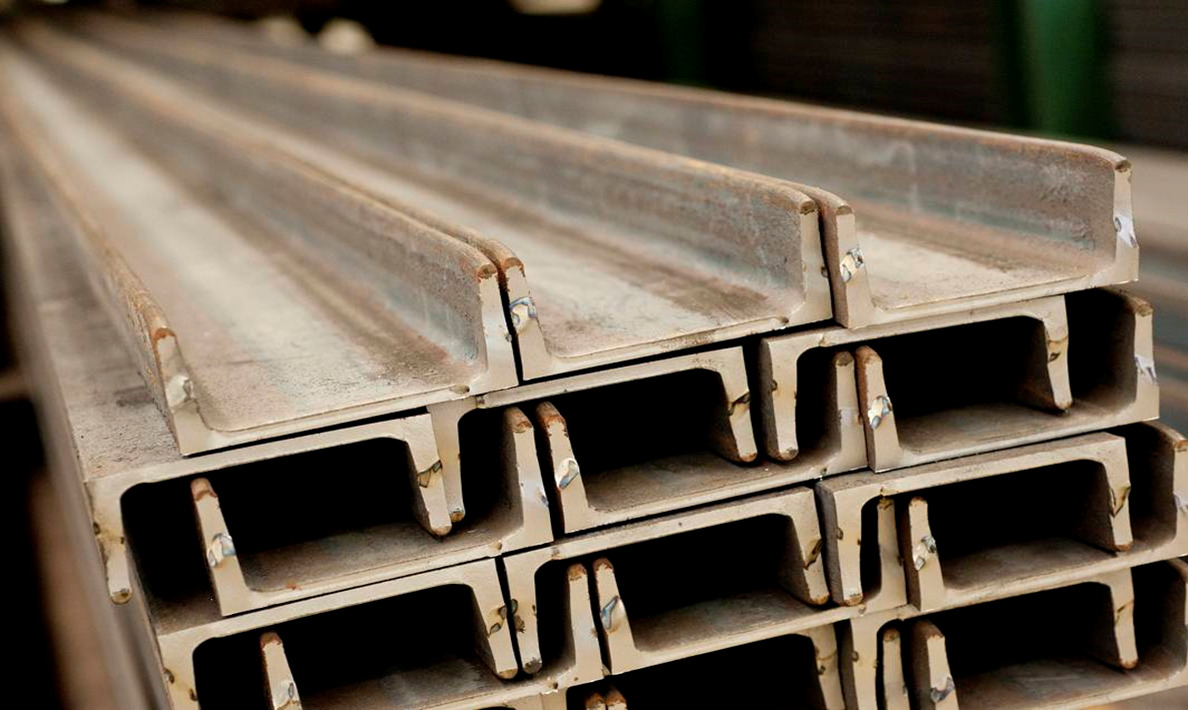

HOT ROLLED PROFILES

Standards
DimensionalTolerances
UPN de 80 a 400UNE-36522-72UNE-36522-72
IPN de 80 a 600UNE-36521-96UNE-EN 10024-95
IPE de 80 a 750UNE-36526-94UNE-EN 10034-94
HEA de 100 a 1000UNE-36524-94UNE-EN 10034-94
HEB de 100 a 1000UNE-36524-94UNE-EN 10034-94
AnglesUNE-EN 10056-1UNE-EN 10056-2
